Portable Soaking System

WTO-mini

Portable Ozone Water Generator

Compact portable ozone water generator for home, spa, hospital care, pet bathing and small soaking applications.

KEY HIGHLIGHTS
✓ Compact portable design
✓ 80 mg/h ozone output
✓ Small soaking and sanitation applications
✓ Easy home, spa and care use
APPLICATIONS

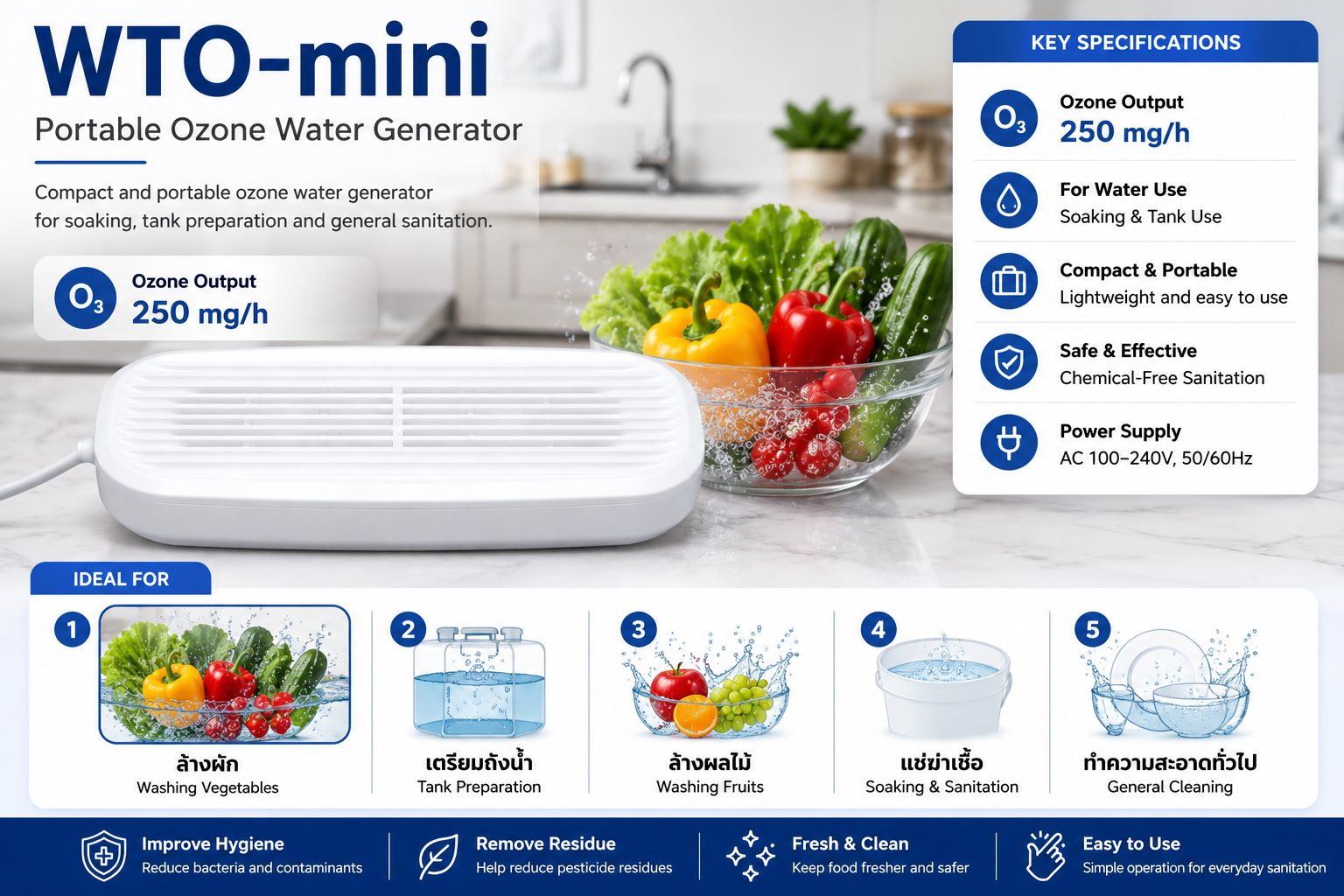

✓ Vegetable Washing

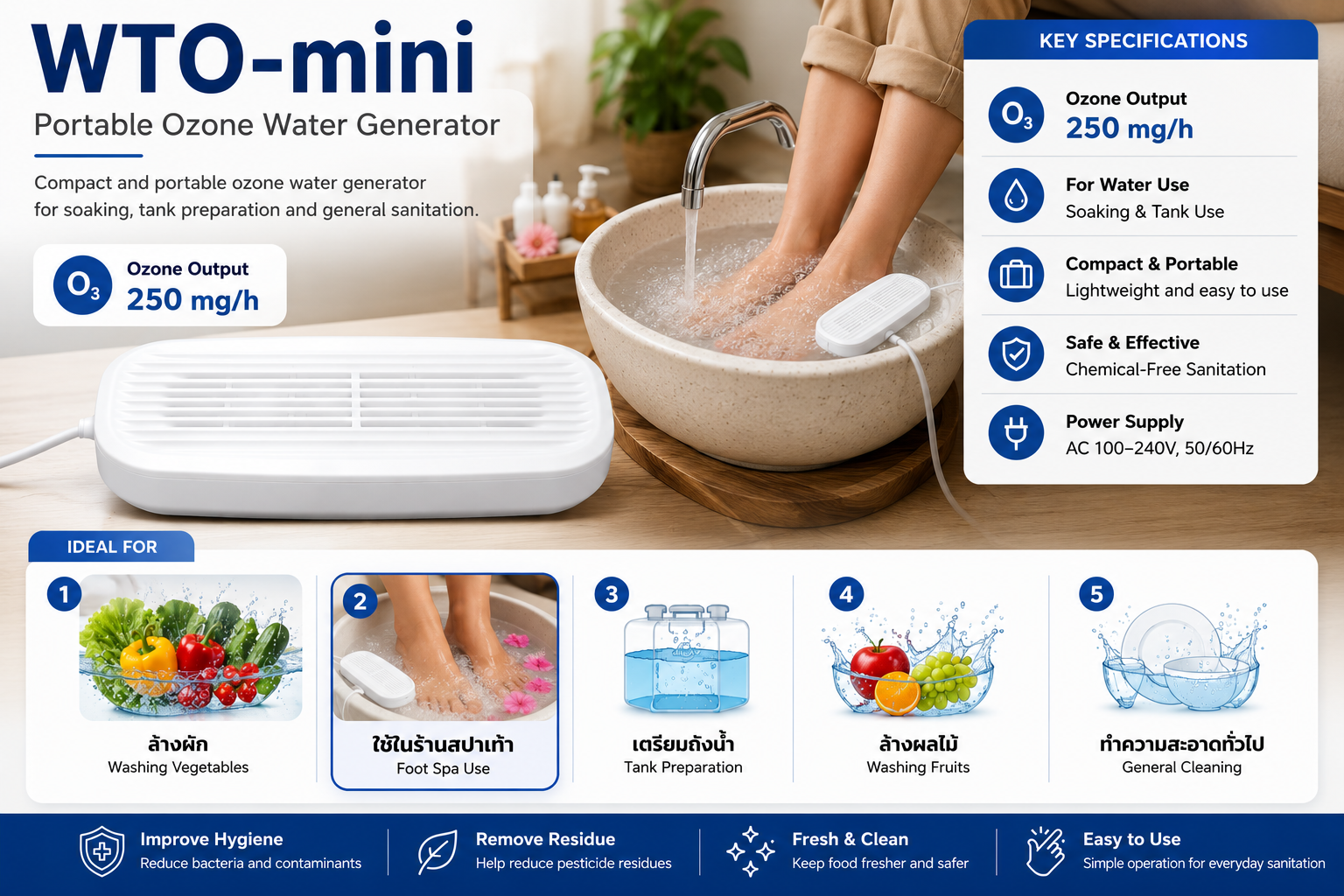

✓ Foot Spa Use

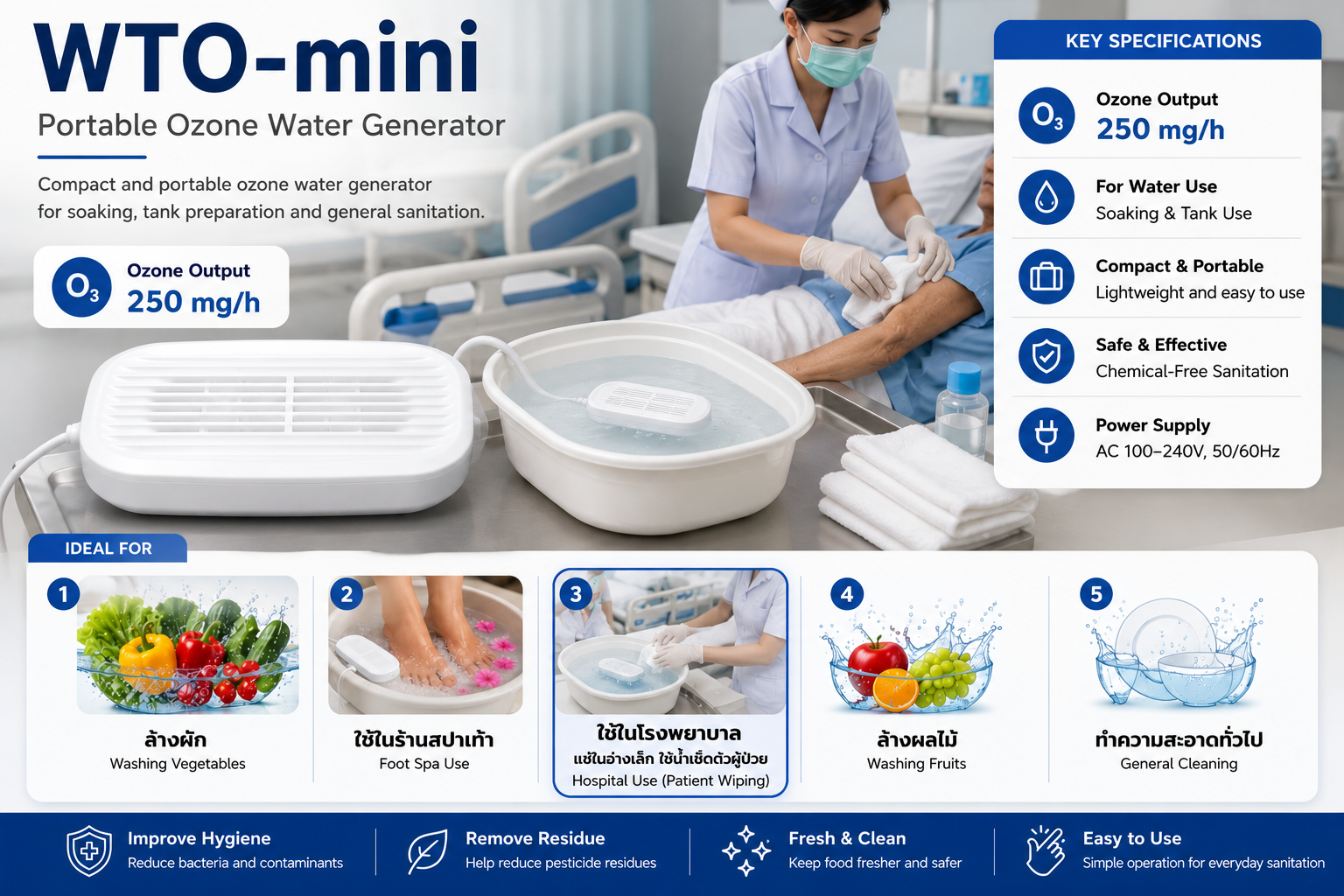

✓ Hospital Patient Wiping
✓ Pet Bathing
PRODUCT SPECS
Technology
Portable ozone water generation
Ozone Output
80 mg/h
Application
Small soaking / sanitation
VIDEO LIBRARY

Product videos

INSTALLATION GUIDE

Typical installation examples

Practical reference layouts for applying WTO-mini in real operating environments.

QUICK SIMULATION

WTO-mini Soaking Ozone Concentration Estimate

Estimate ozone concentration and CT value for soaking applications based on water volume, ozone output, contact time and system loss.

Open Advanced Simulation →
1 min10 min30 min
EFFECTIVE OUTPUT
64 mg/h
ESTIMATED O₃
1.07 ppm
ESTIMATED CT
10.7 ppm·min
SUGGESTED TIME
8–12 min
WATER VOLUME
10 L
QUALITY INDICATOR
Medium
Ozone Concentration and CT Accumulation
Blue line shows estimated ozone concentration over soaking time. Gray line shows CT accumulation.
1.07 ppm
1.07 ppm0 min20 minO₃ concentrationCT accumulation
RECOMMENDED USE
Soaking tank, food washing, spa and small water tank applications.
ENGINEERING NOTE
Actual ozone level depends on water quality, load, temperature and organic contamination.
